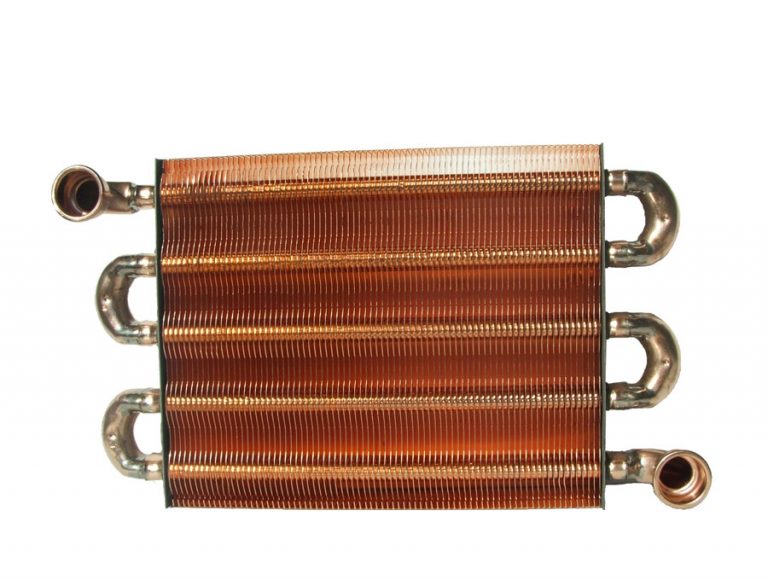

Monothermal 5 oval tubes

D24x12

Monothermal
5 oval tubes

D24x12

Heat exchangers for traditional boilers

Request info

    overall dimensions (A) overall dimensions (B) number flapsheat output (max)
    180 mm 225 mm 79-82 24 kW
    180 mm 260-270 mm 86-98 28 kW
    180 mm 290-300 mm 90-109 32 kW

    * The heat output expressed in the table is INDICATIVE.

    functional features
    maximum operating pressure bar3
    maximum operating temperature °C 93
    minimum distance from the burnermm 140
    surface treatmentsilicone coating with added aluminum
    Various types of connections are available. Contact Valmex S.p.A. in case of necessary fittings and/or customizations.
